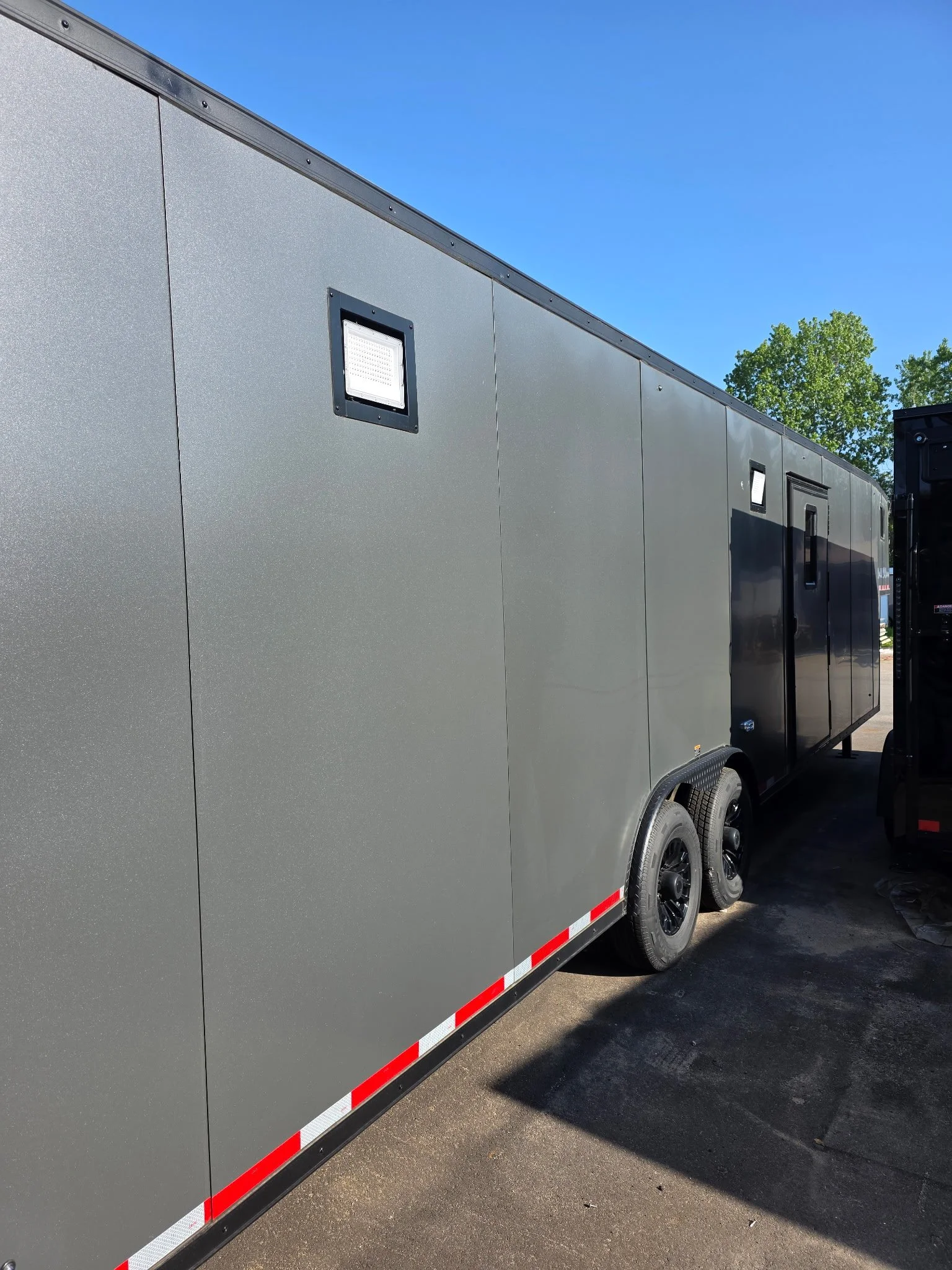

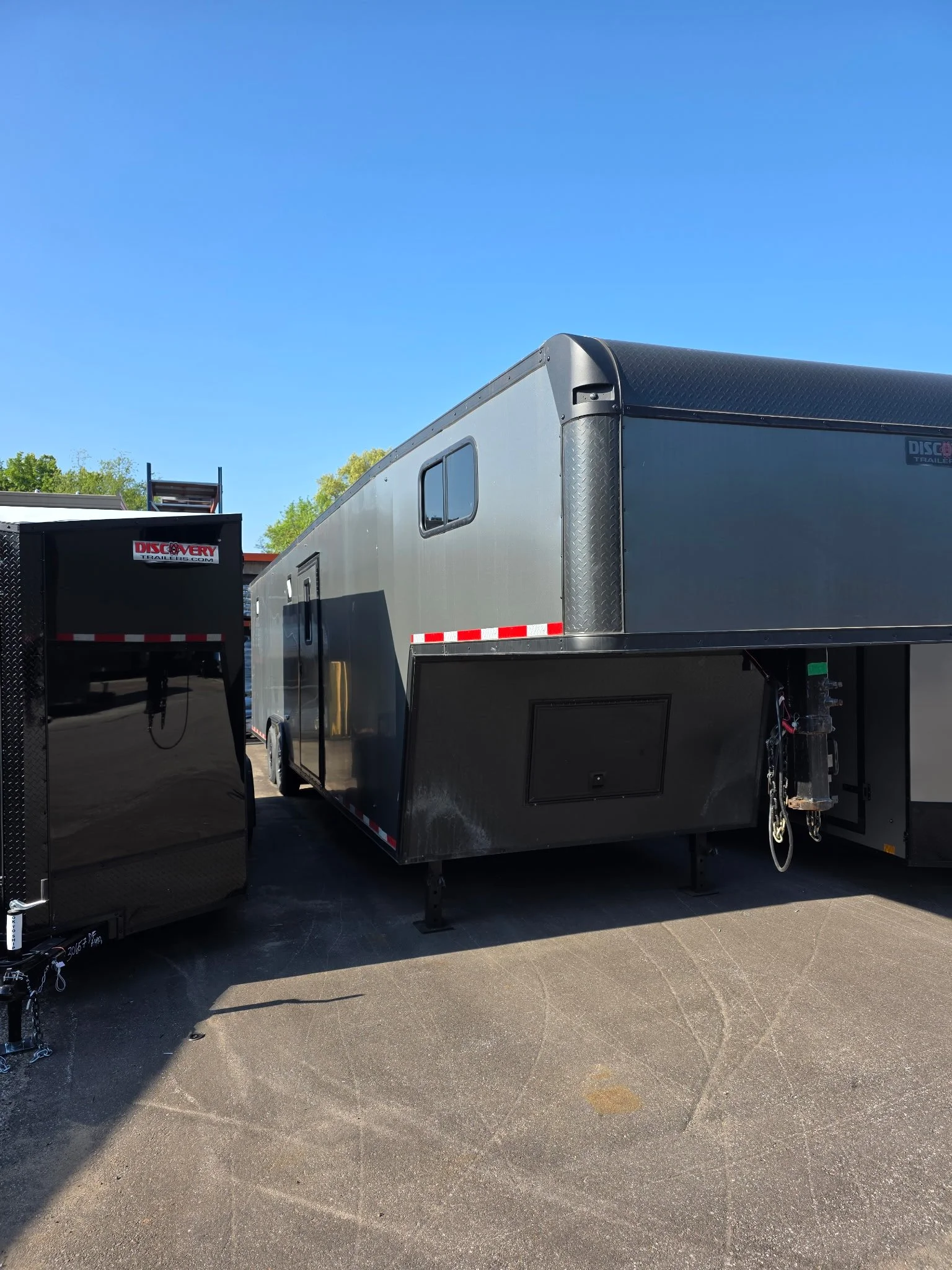

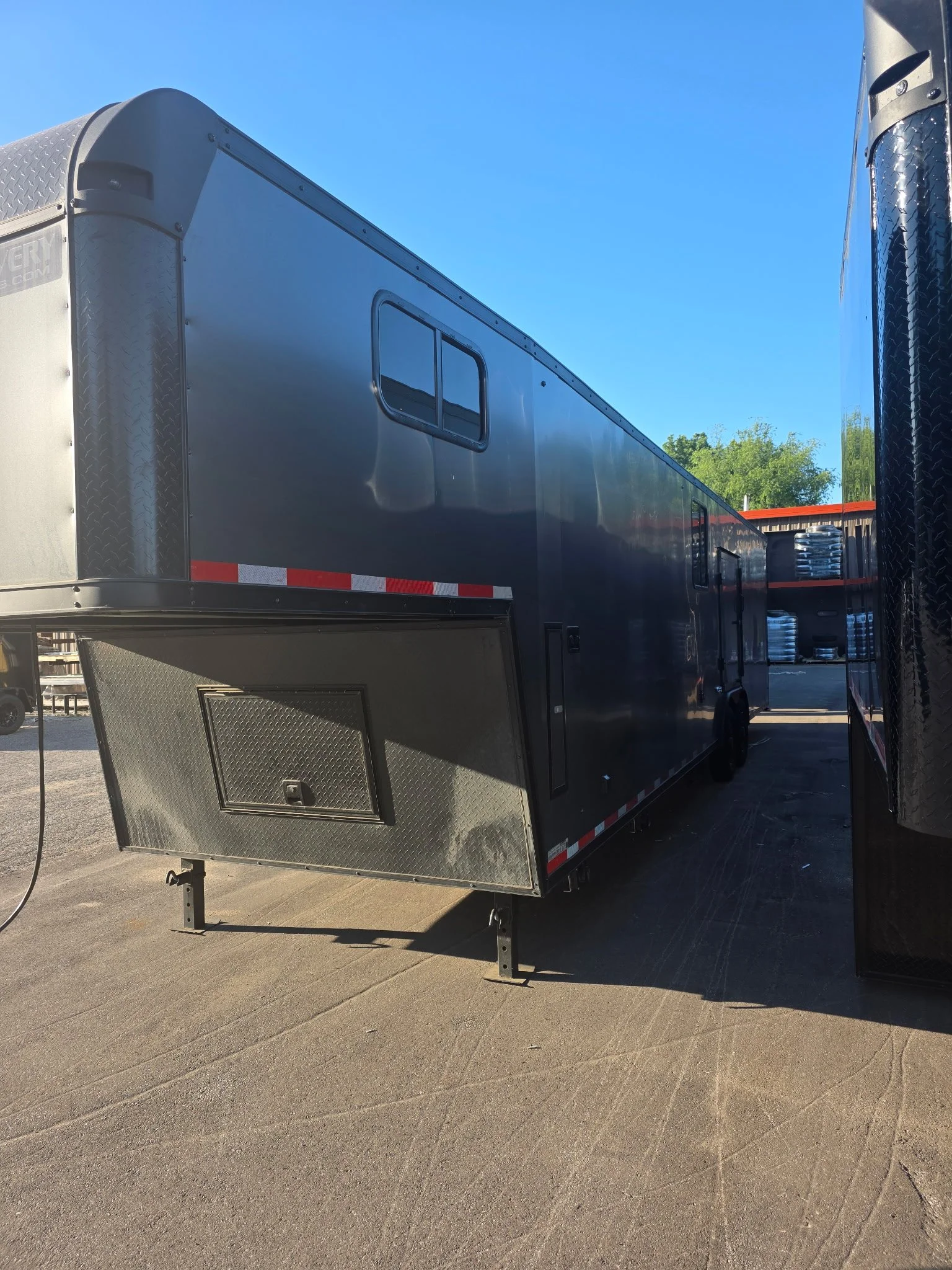

DISCOVERY GOOSENECK 8.5x38TA5 BATHROOM PACKAGE

ALUMI-TEC**BLACK OUT**

INSIDE WALLS -ALUMI-PRO WALLS

EXTERIOR COLOR**MATTE CHARCOAL METALLIC**

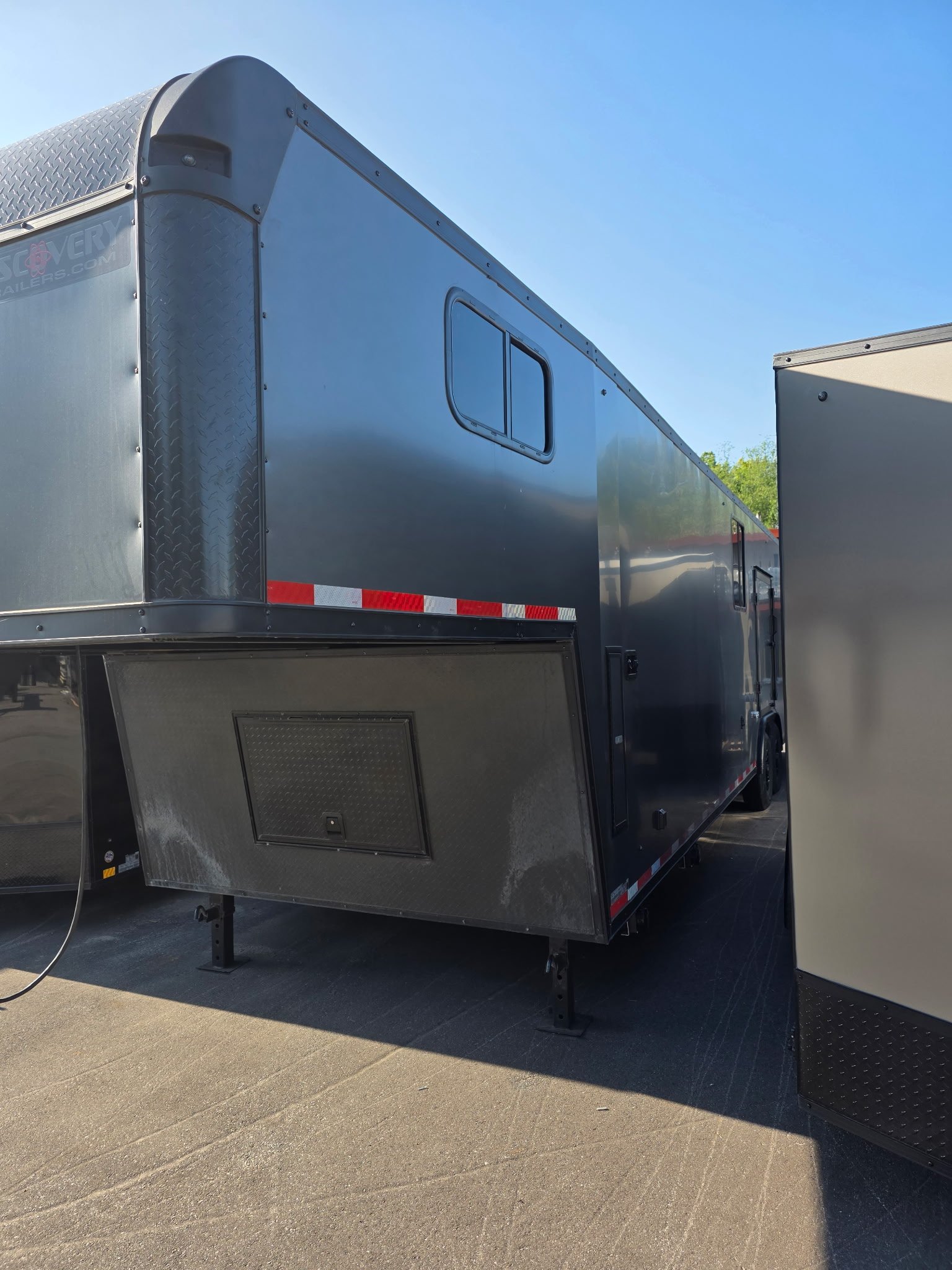

FLAT TOP BULL NOSE TAPERED BUNK

REAR RAMP DOOR

BEAVER TAIL

84'' INTERIOR HEIGHT

STANDARD FEATURES:

4" x 8" Tube Steel Main Frame

Flat Top w/ Tapered Sides on Upper Deck

Preformed Steel Crossmembers 16" O/C

Tube Steel Wall Studs 16" O/C

Tube Steel Roof Bows 16" O/C

Dexter Torsion Axles w/ E-Z Lube Hubs All-Way Electric Brakes

Radial Tires on Steel Wheels

(4) 5000 # Recessed D-Rings

2 Speed Dual Manual Landing Gear

Gel Cell Rechargeable Breakaway Kit 2-5/16" Gooseneck Coupler OR 5tH Wheel

7-Way Electric Plug

Semi-Screwless Exterior - Screwed Seams

3" Top 􏰓 Bottom Trim

Painted Screws

ATP Aluminum Fenders

Rear Cast Corners

ATP Radius Between Cast Corners ATP Front Vertical Corners

Roof Vent or Flo-Thru Vents

Seamless Aluminum Flat Top Roof

Full Gravel Guard Over Gussets

24" X 26" ATP Baggage Door

48" Aluminum Door w/ Bar Lock 􏰓 Step Well

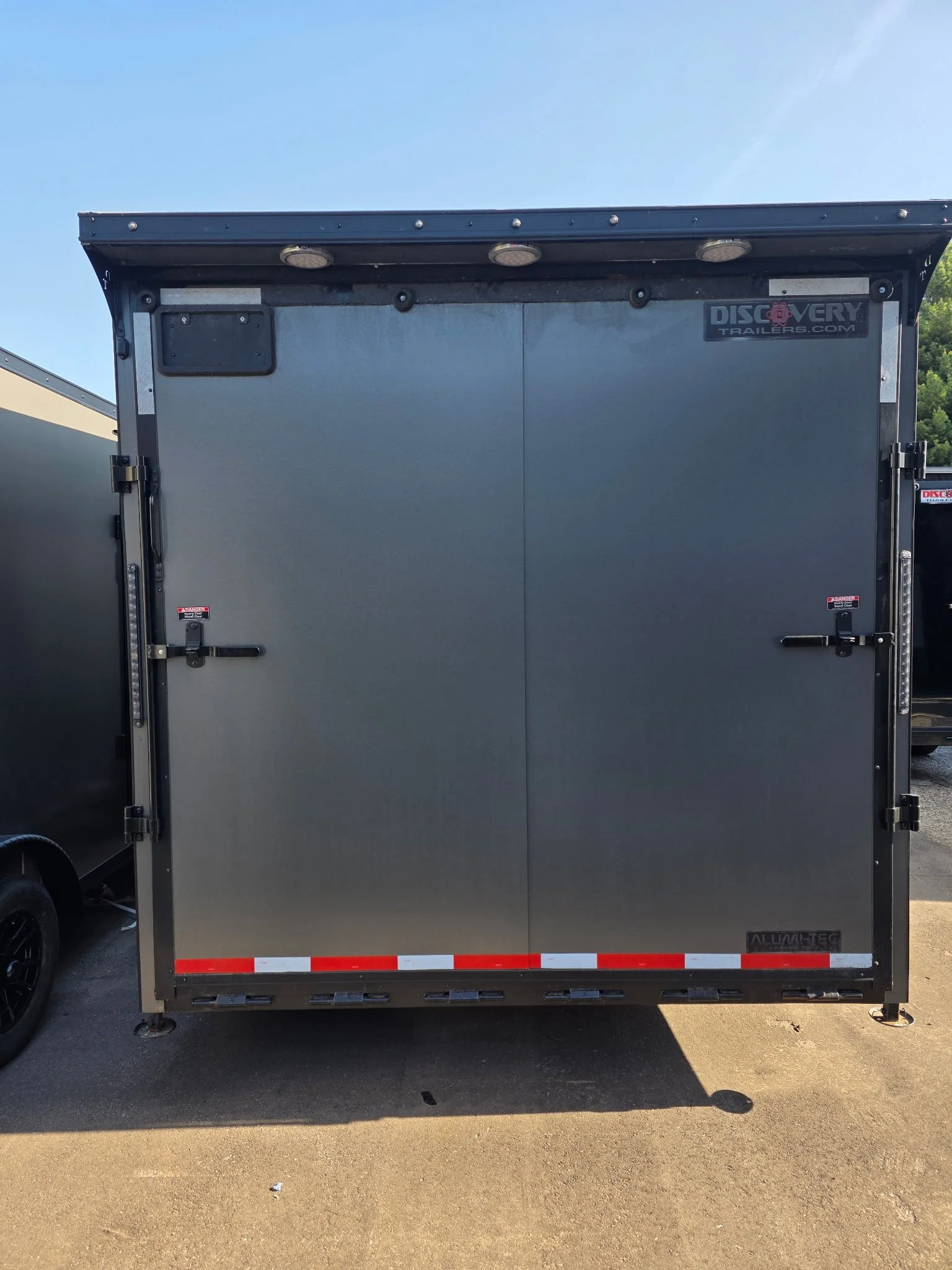

5K Ramp Door and Beavertail

Side Door Pull-Handle

ALUMINUM Door Hardware - Aluminum Hinges Aluminum Door Holdback

(2) 12-Volt L.E.D. Dome Lights w/ Switch

3/4" Drymax Floor

3/8" Drymax Interior Walls

L.E.D. Strip Rear Tail / Turn / Stop Lights

L.E.D. Clearance Lights

4 Top Lights 2 Bottom Lights 1Lights Front Cast Corners Midship Turn Signals
6" Barrier Tape

DOT/CSA Approved Safety Equipment

3 Year Structural Warranty
1 Year Limited Warranty

ADDED OPTIONS:

12 Volt MAX AIRFLO Roof Vent w/ Built-In Thermostat 3 TOTAL

6" Extra Height
Aluminum Wheel Upgrade for 7000# Axles Per Axle ST235/80R16
ST235/80R16 Radial Spare w/ Aluminum Wheel – 7000# Axles
Spoiler Above Ramp Door w/ 3- 5''
ROUND LED LIGHTS

Corner Post Drop Down 􏰇acks w/ Sand Pads-pair

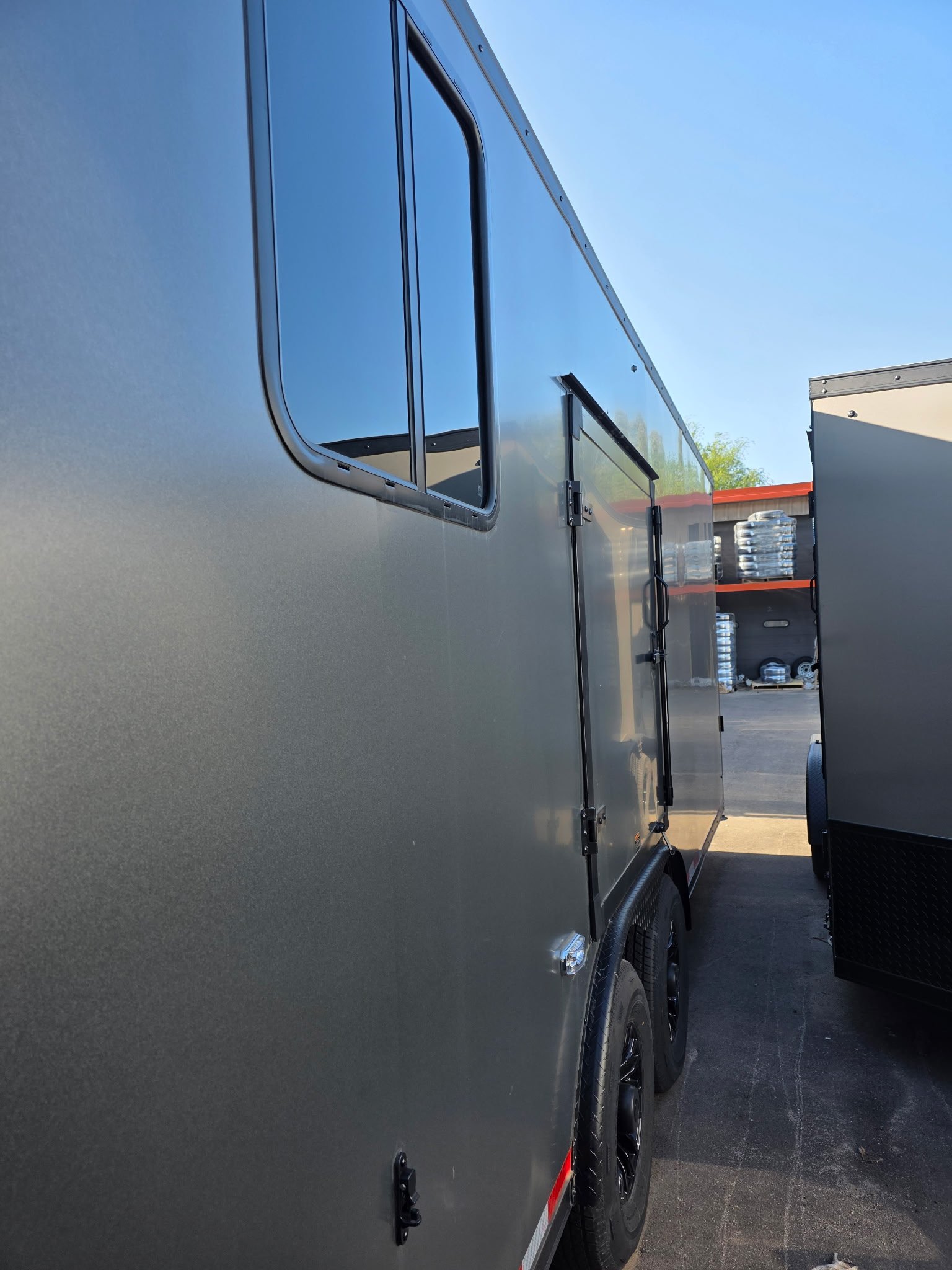

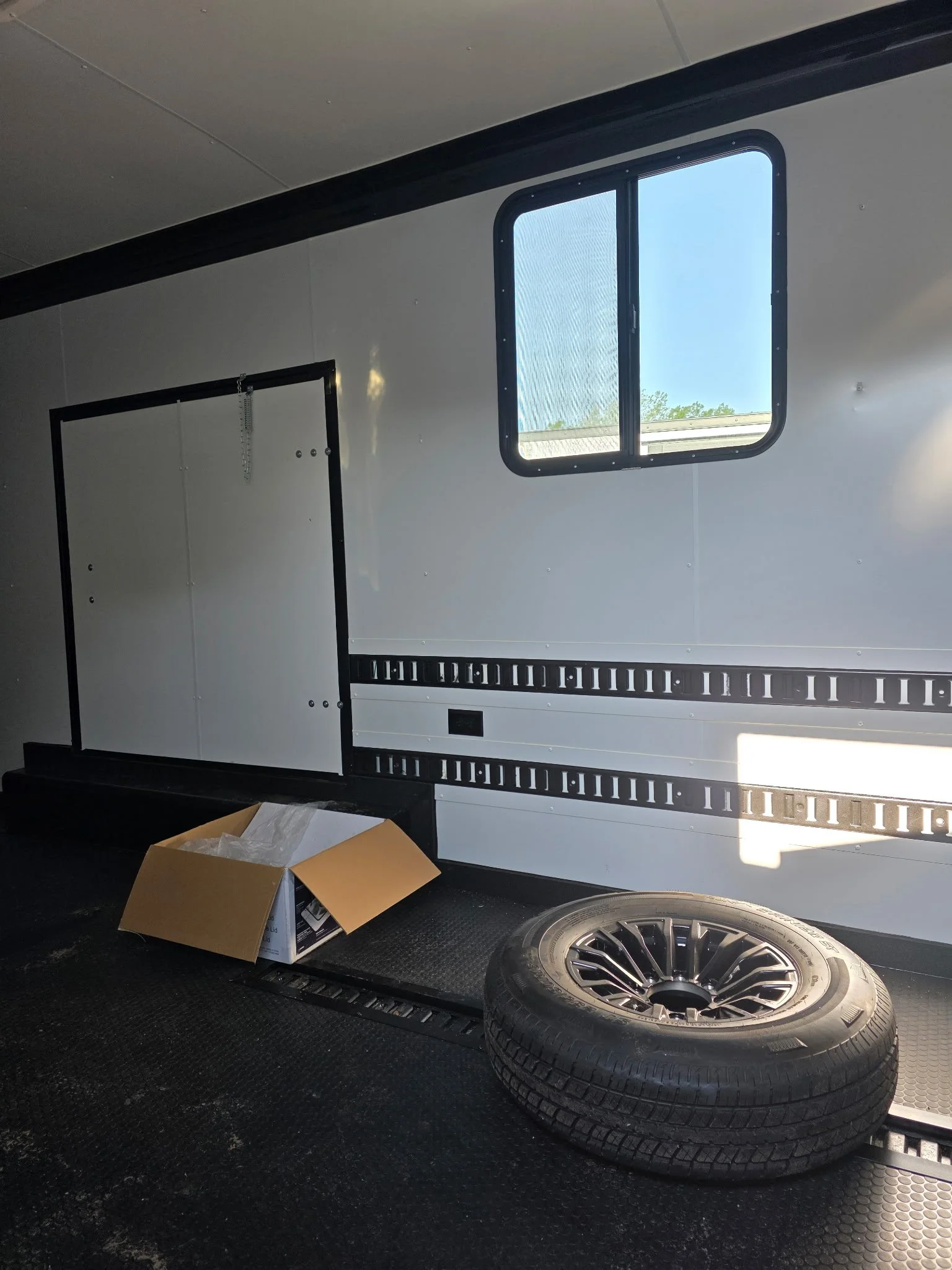

30" x 15" Horizontal Slider Window with Screen -2 TOTAL
1 R/S AND C/S CENTER IN BUNK 6'' DOWN FROM BOTTOM OF ROOF BOWS

30" x 30" Horizontal Slide Window w/ Screen -2 TOTAL-

1 R/S-START AT 16FT FROM ZERO POINT

6'' DOWN FROM BOTTOM OF ROOF BOWES

48"X80'' RV Door w/ Window 􏰓 Screen - BLACK OUT

C/S START AT 90'' BACK FROM 􏰏ERO POINT

Non-Powered Roof Vent-CENTER IN BUNK

Prep and Wire Roof Vent for Roof Air WITH ROOF VENT-CENTER IN BOX AREA

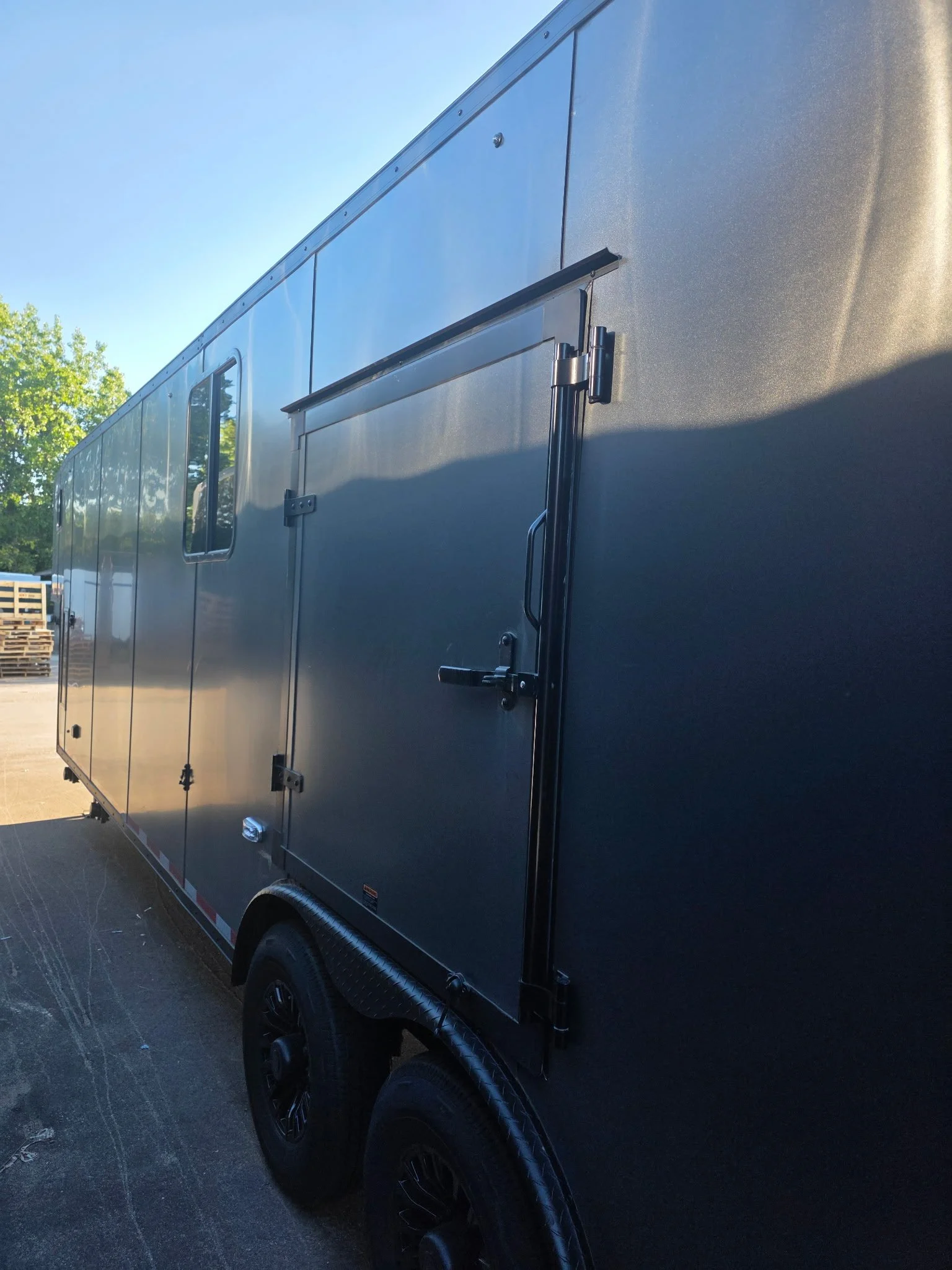

54" X 54" Roadside Escape Door w/ Bar-Lock R/S CENTER OVER AXLES

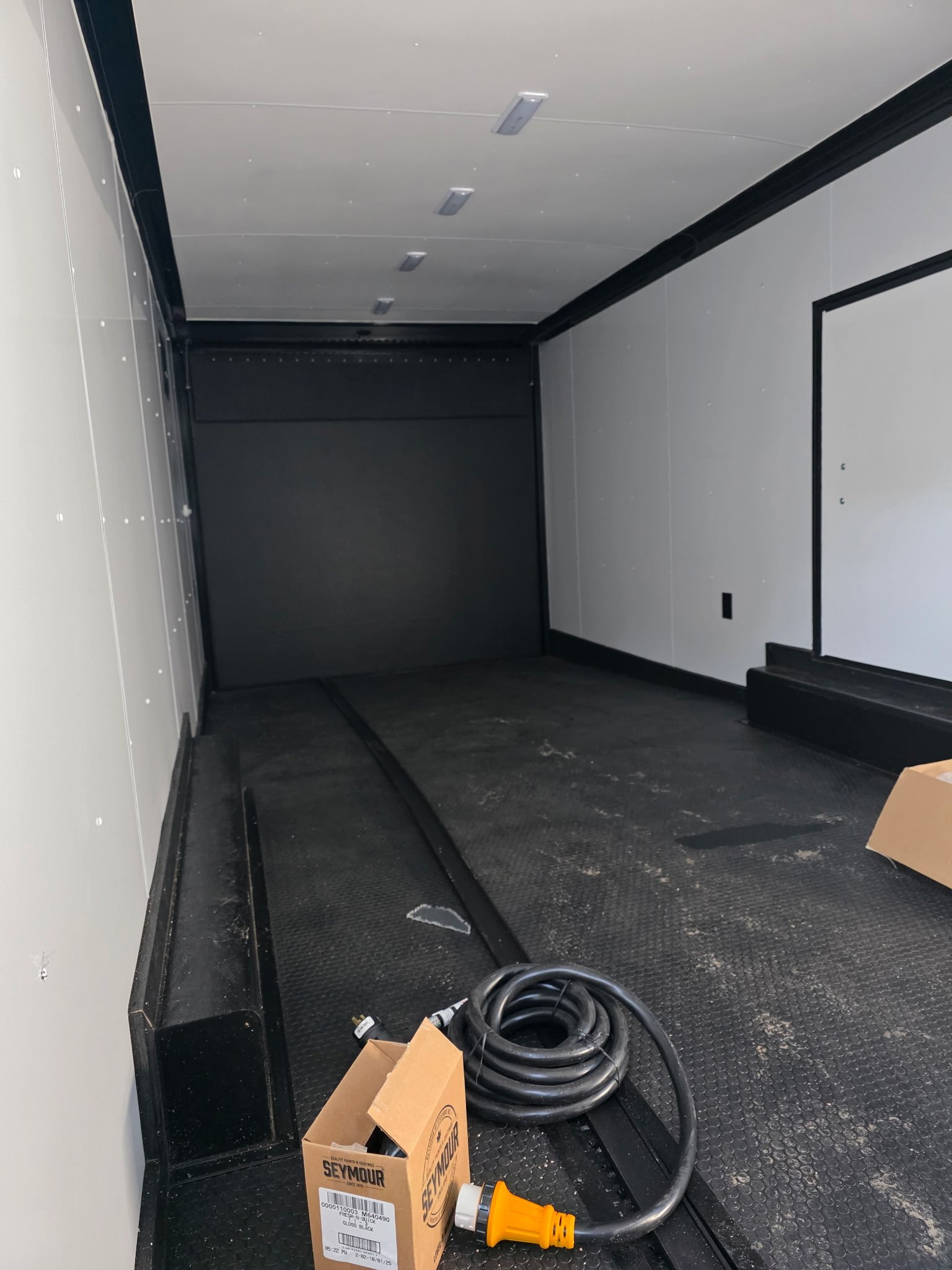

E-Track Recessed in Floor Heavy Duty

R/S AND C/S START AT 9FT BACK FROM RISER WALL STOP AT 6FT BOTH 2FT FROM WALLS

E-Track Recessed in Walls -Heavy Duty

R/S WALL START AT 9FT BACK FROM RISER WALL -STOP AT ESCAPE DOOR 1 -ROW AT 12'' AFF TO BOTTOM OF E TRACK

1 - ROW AT 24'' AFF TO BOTTOM OF E TRACK

ALUMA-PRO WALL UPGRADE FROM 3/8'' DRYMAX WALLS

Insulated Sidewalls-3/4" Foam Board R-4

Insulated Ceiling with White Vinyl Liner 􏰓 Colored Coves-3/4" Foam Board R-4

BLACK COVES

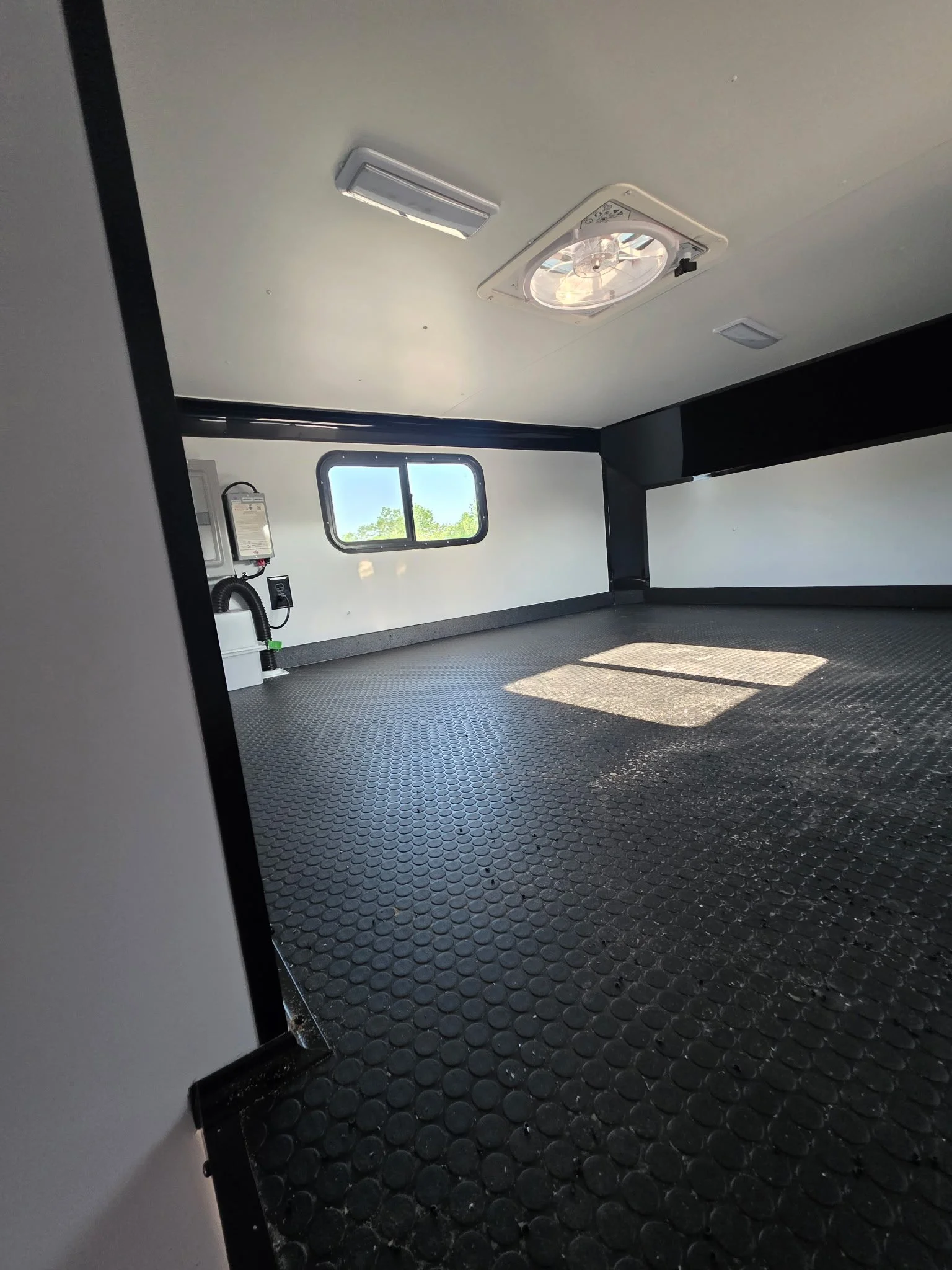

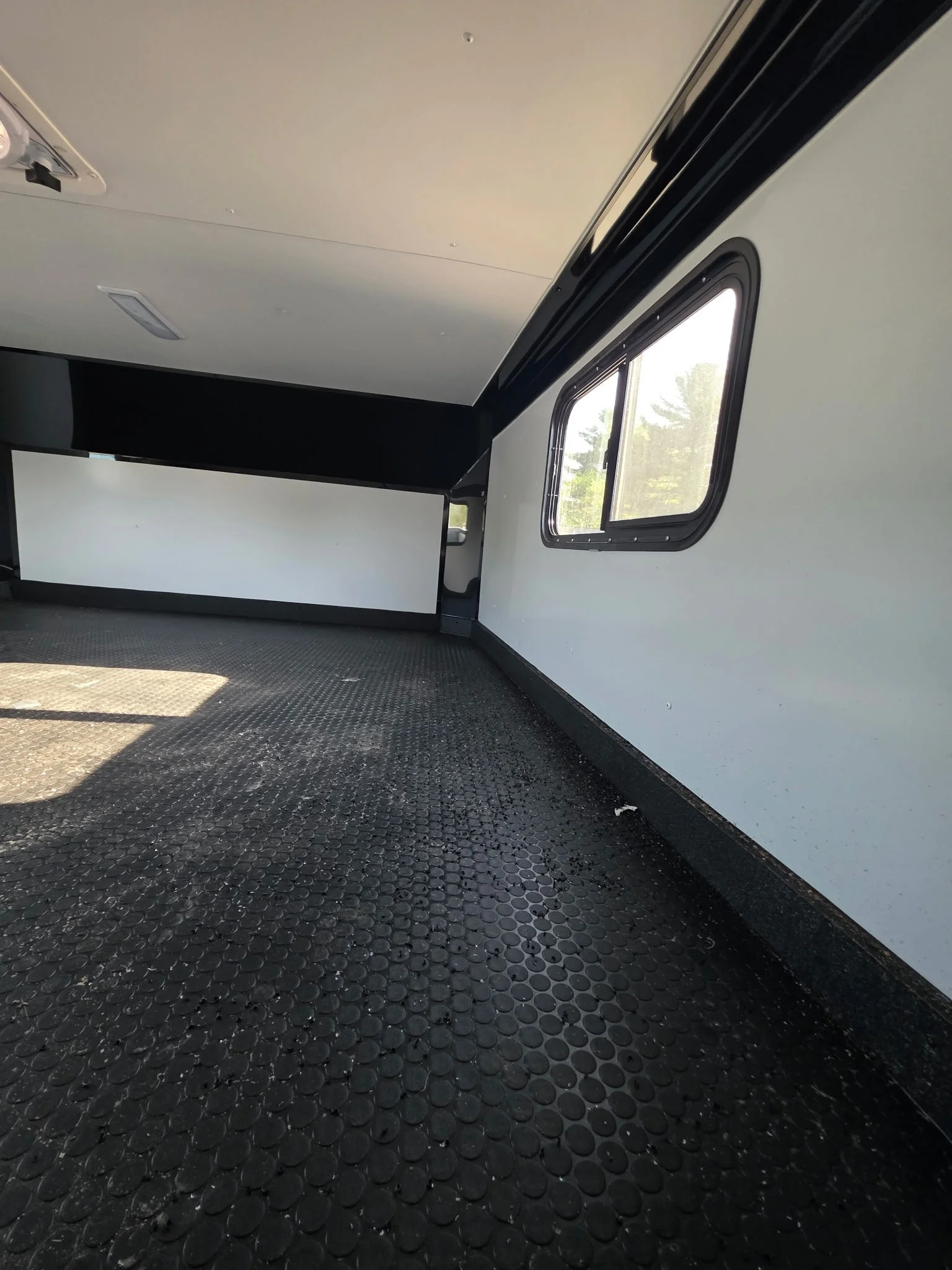

Black Rubber Coin - Disc. Rolled Flooring - FLOOR RAMP FLAP AND BUNK

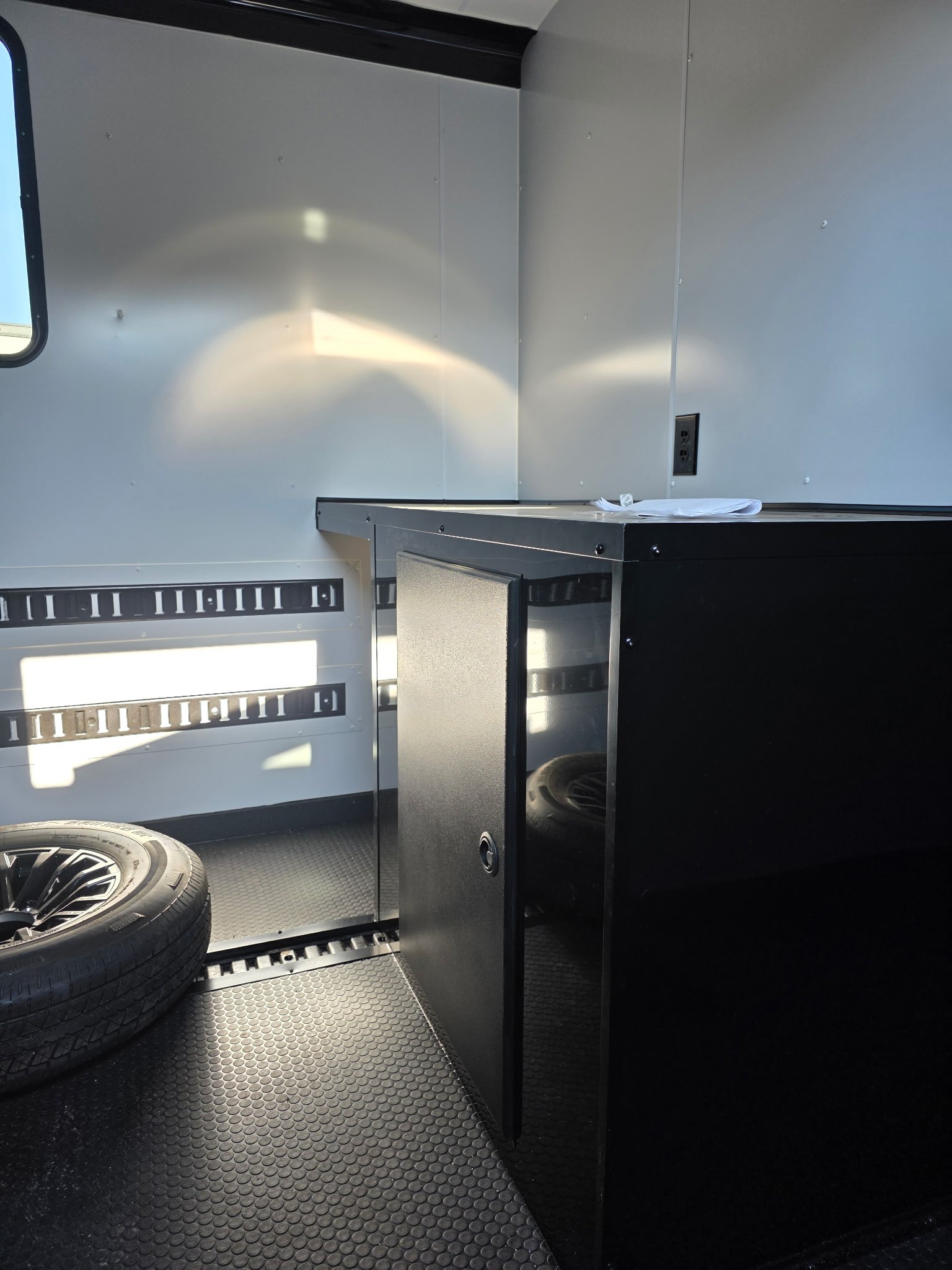

24" Wide Aluminum Mill Finis􏰐/Interior Counter - R/S OUTSIDE BATHROOM WALL 24X24

24''D x 41'' WIDE BASE CABINET

BLACK OUTSIDE BATHROOM WALL BUT UP AGAINST 24X24 COUNTER TOP

BATHROOM START AT R/S RISER WALL*** 84'' LONG X 65'' WIDE***

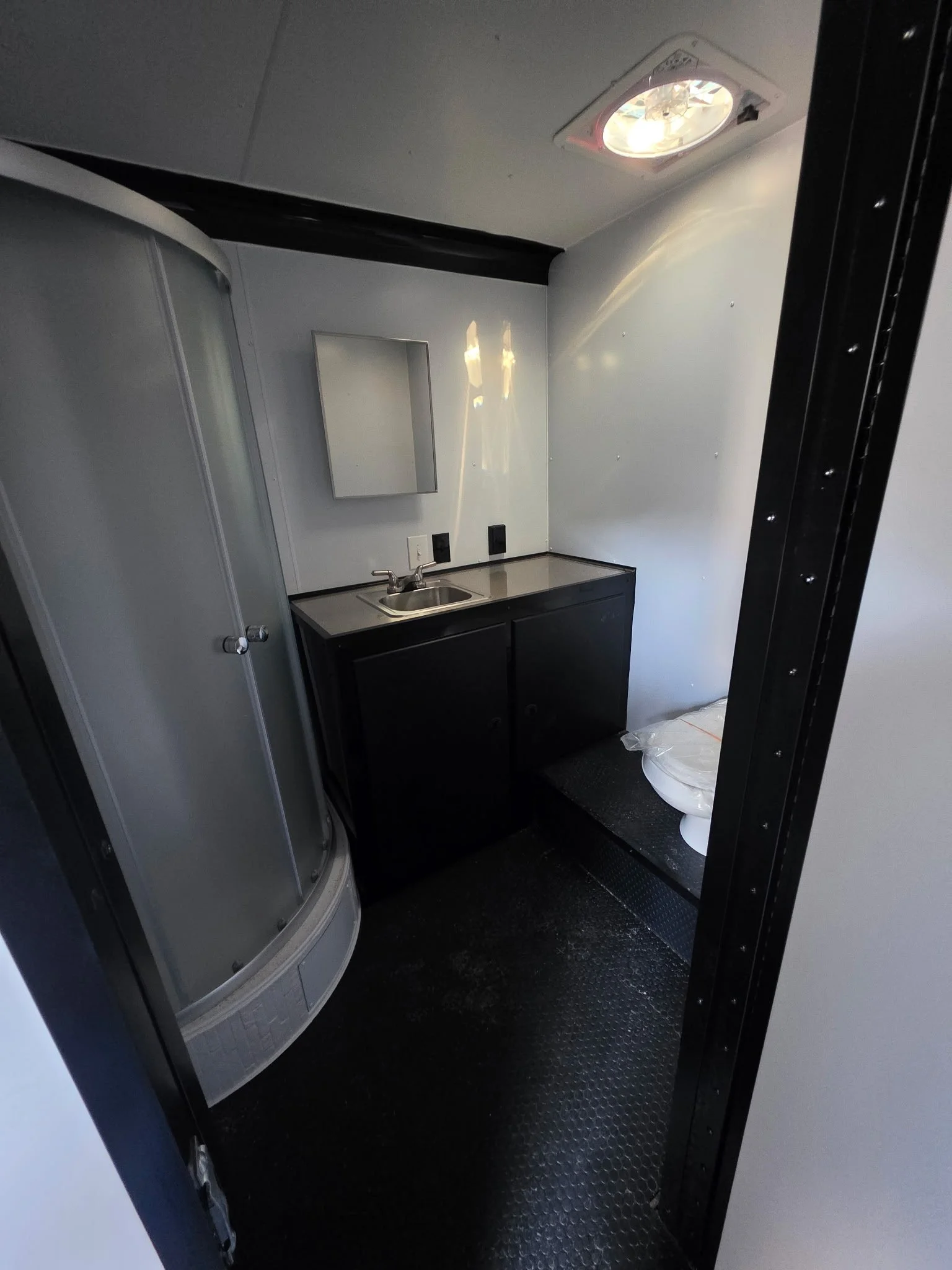

Bathroom Package A - Requires 84" Minimum Interior Height for Shower

Low Profile Toilet

32" x 32" x 6" Shower

Shower Assembly

15" x 15" Stainless Steel Sink Faucet

Cabinet -BLACK 110V Water Pump

1- GFI ABOVE SINK

6 Gallon Water Heater - 110v Electric Black/Grey/ Fres􏰐 Water Tanks

City Water Fill

1- 12V Roof Vent

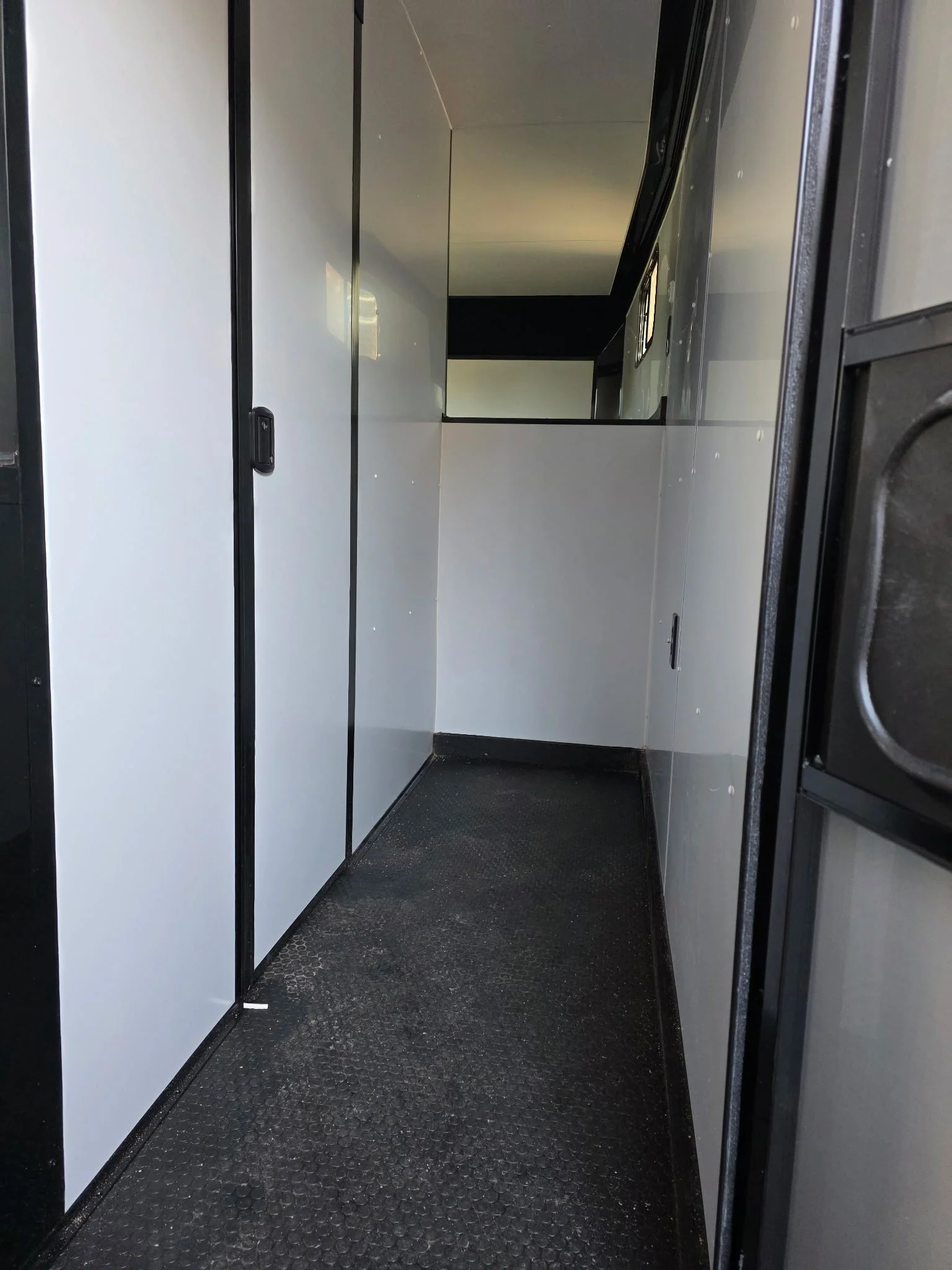

Partition Walls w/Door

Medicine Cabinet

12v Dome Light w/Switch

All Plumbing Accessories Required

12 Volt Battery w/ Box 􏰓 Wiring PKG
R/S IN BUNK 􏰇UST PAST RISER WALL
ABOVE BATTERY- WIRE TO INTERIOR 12 VOLT

AND 7WAY CHARGE Line
12 Volt 45 AMP CHARGER/CONVERTER

WITH RECEPT

12 Volt Wall Switch -FOR DOME LIGHTS IN BUNK

110 Volt Interior Receptacle - 2 Gang -6 TOTAL SEE PACKAGE BELOW

Deluxe 50 AMP 110 Volt Package

(8)11'' 12v LED FLUSHMOUNT Lights

6 CENTER FRONT TO BACK EVENL􏰖 SPACED 2 IN BUNK ON SEPARATE SWITCH

(3) Wall Switches (2) 3-way for Interior light (1)Switch for Recessed M3 LIGHTS

(6) Wall Receptacles

1 - OUTSIDE BATHROOM WALL CENTER ABOVE BASE CABINET 40'' AFF

1 C/S WALL IN BUNK 6'' BACK FROM RISER WALL 12'' UP FROM BUNK

2 R/S WALL EVENL􏰖 SPACE FROM BATHROOM TO REAR OF TRAILER

18'' AFF

1 C/S WALL BETWEEN MAN DOOR AND RISER WALL 24'' AFF

1 C/S WALL 12'' FROM REAR 24'' AFF

(2)12V M3 Recessed Lights

C/S EVENLY SPACE BETWEEN MAN DOOR AND REAR OF TRAILER

6'' DOWN FROM BOTTOM OF ROOF BOWES

50 AMP Panel Box R/S WALL IN BUNK OVER BATTER

50Amp Motorbase Plug w/Twist Lock Cord

R/S FRONT DOWN LOW
